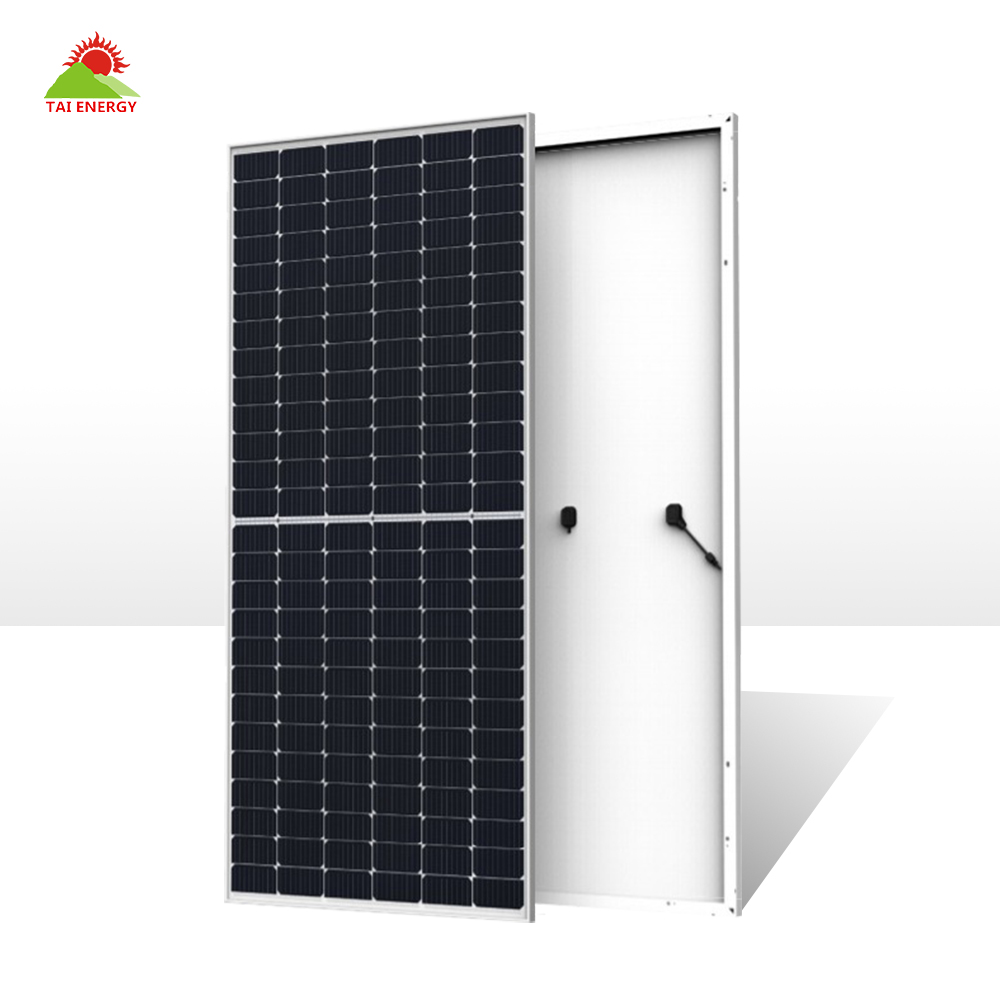

MORE POWER MORE RELIABLE
Module efficiency up to 21.2%
Compatible with mainstream trackers
Cost effective product for utility power plant.
Better shading tolerance.
Lower internal current,lower hot spot temperature Minimizes micro-crack impacts Heavy snow load up to 5400 Pa, wind load up to 2400 Pa.
Nominal Max. Power (Pmax) | 475W | 480W | 485W | 490W | 495W | 500W |
Opt. Operating Voltage (Vmp) | 44.0V | 44.2V | 44.4V | 44.6V | 44.8V | 45.0V |
Opt. Operating Current (Imp) | 10.81A | 10.87A | 10.94A | 11.00A | 11.06A | 11.12A |
Open Circuit Voltage (Voc) | 52.7V | 52.9V | 53.1V | 53.3V | 53.5V | 53.7V |
Short Circuit Current (Isc) | 11.52A | 11.57A | 11.62A | 11.67A | 11.72A | 11.77A |
Module Efficiency | 20.10% | 20.30% | 20.60% | 20.80% | 21.00% | 21.20% |
Operating Temperature | ~40°C ~ +85°C | |||||
Max. System Voltage | 1500V (IEC) or 1000V (IEC) | |||||
Module Fire Performance | CLASS C (IEC 61730) | |||||
Max. Series Fuse Rating | 30 A | |||||
Application Classification | Class A | |||||
Power Tolerance | 0 ~ + 10 W | |||||
Cell Type | 210mm wafer /Mono-crystalline | |||||
Cell Arrangement | 156 [2 x (13 x 6) ] | |||||
Dimensions | 2252 ˣ 1048 ˣ 35 mm (85.5 ˣ 51.3 ˣ 1.38 in) | |||||
Weight | 25.7 kg (69.2 lbs) | |||||
Front Cover | 3.2 mm tempered glass | |||||
Frame | Anodized aluminium alloy, crossbar enhanced | |||||
J-Box | IP68, 3 bypass diodes | |||||
Cable | 4 mm2 (IEC) | |||||
Per Pallet | 31 pieces | |||||
Per Container | 40HQ/600 pieces | |||||
Contact us for more discount information!
