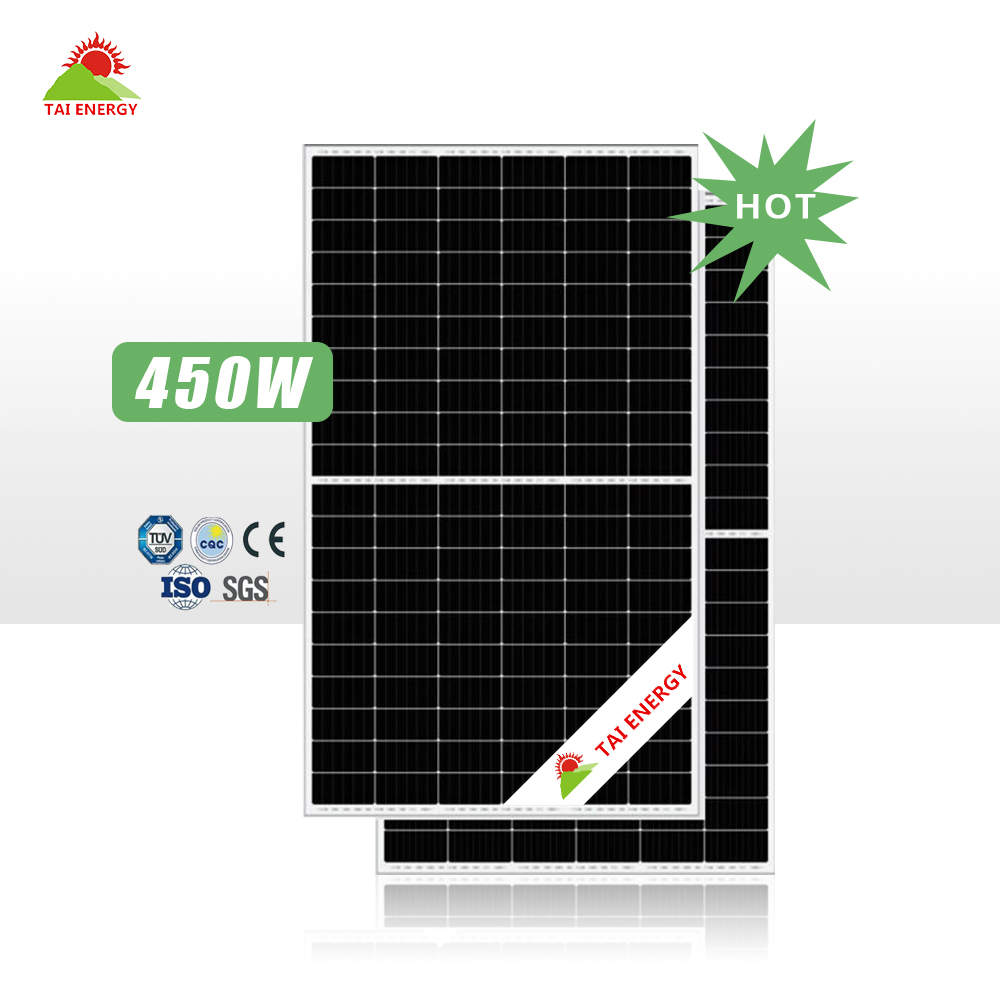

MORE POWER MORE RELIABLE
Module efficiency up to 21.2%
Compatible with mainstream trackers,
Cost effective product for utility power plant.
Better shading tolerance.
Lower internal current,lower hot spot temperature
Minimizes micro-crack impacts
Heavy snow load up to 5400 Pa, wind load up to 2400 Pa.
Nominal Max. Power (Pmax) | 435W | 440W | 445W | 450W | 455W | 460W | 465W |
Opt. Operating Voltage (Vmp) | 40.5V | 40.7V | 40.9V | 41.1V | 41.3V | 41.5V | 41.7V |
Opt. Operating Current (Imp) | 10.75A | 10.82A | 10.89A | 10.96A | 11.02A | 11.09A | 11.16A |
Open Circuit Voltage (Voc) | 48.5V | 48.7V | 48.9V | 49.1V | 49.3V | 49.5V | 49.7V |
Short Circuit Current (Isc) | 11.42A | 11.48A | 11.54A | 11.60A | 11.66A | 11.72A | 11.78A |
Module Efficiency | 19.70% | 19.90% | 20.10% | 20.40% | 20.60% | 20.80% | 21.10% |
Operating Temperature | ~40°C ~ +85°C | ||||||
Max. System Voltage | 1500V (IEC) or 1000V (IEC) | ||||||
Module Fire Performance | CLASS C (IEC 61730) | ||||||
Max. Series Fuse Rating | 30 A | ||||||
Application Classification | Class A | ||||||
Power Tolerance | 0 ~ + 10 W | ||||||
Cell Type | 166mm wafer /Mono-crystalline | ||||||
Cell Arrangement | 144 [2 X (12 X 6) ] | ||||||
Dimensions | 2108 X 1048 X 35 mm (83.0 X 41.3 X 1.38 in) | ||||||
Weight | 24.3 kg (53.6 lbs) | ||||||
Front Cover | 3.2 mm tempered glass | ||||||
Frame | Anodized aluminium alloy, crossbar enhanced | ||||||
J-Box | IP68, 3 bypass diodes | ||||||
Cable | 4 mm2 (IEC) | ||||||
Per Pallet | 30 pieces | ||||||
Per Container | 40HQ/720 pieces | ||||||
Contact us for more discount information!
